Welcome to the SonicVision PRO card page!
Prototype #2 shown above
OLD prototype #1 photo
 NEWS |
| 23-SEP-2026 | Design is validated and everything
works as expected! Final version will have two changes: a pair of jumpers to select between
banked or linear access for the GD5434 VRAM higher quality passive components |
| 23-SEP-2026 | Pre-orders are now open, we
target an xmas-time release - info at the bottom of the page! Page is still a WIP - drivers , utilities, jumper info etc will be added soon(tm) |
| SonicVision PRO is an ISA 4in1 card aimed for use with 386/486 systems, features include: | |
 |
Cirrus Logic CL-GD5434 64-bit GUI accelerator VGA chipset with 2MB of VRAM |
|
|
Opti 82C930 sound controller with discrete Yamaha OPL3 (SBPRO/WSS compatible) |
|
|
PCMIDI Intelligent Mode MPU-401 interface |
|
|
Realtek
RTL8019 10mbps network controller with optional bootrom support (bootrom makes it possible to load XT-IDE BIOS, Y2K fix or any other option rom) |
|
|
All 4 devices have driver support for DOS, Windows 3.1x , Windows 9x |
Complete driver
files for all devices/OSes will be added later , for now please

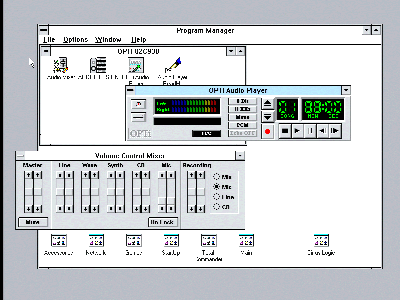

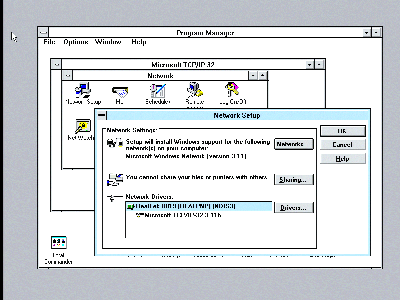

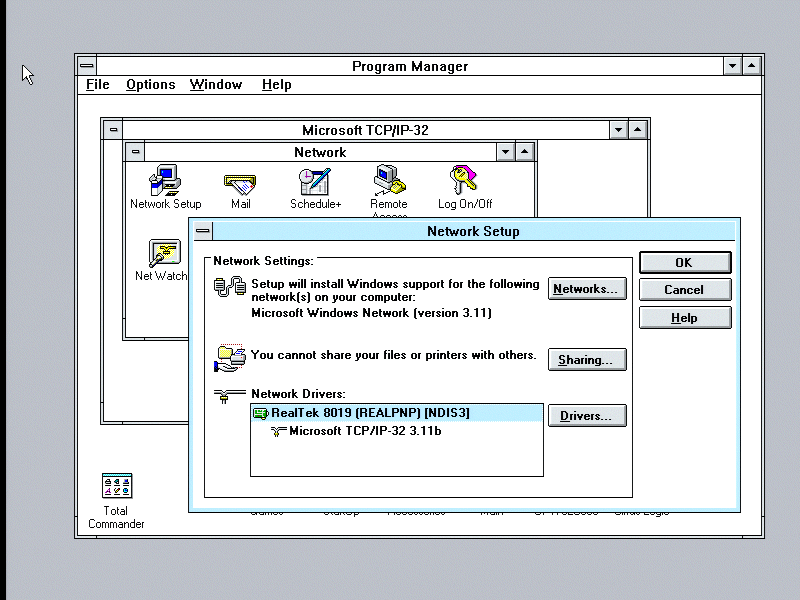

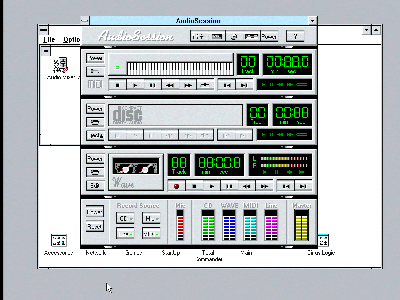

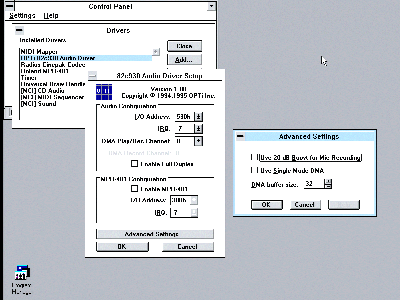

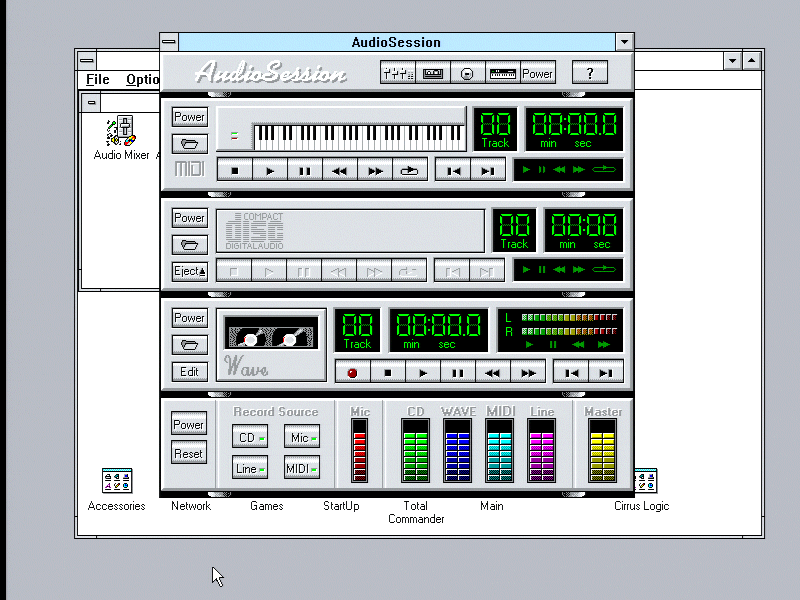

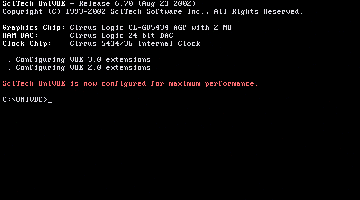

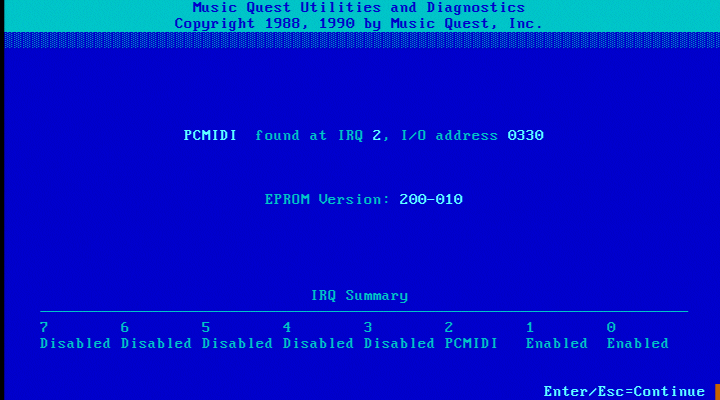

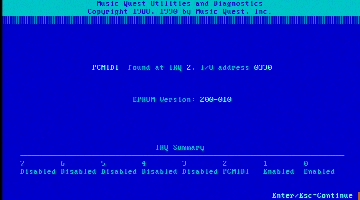

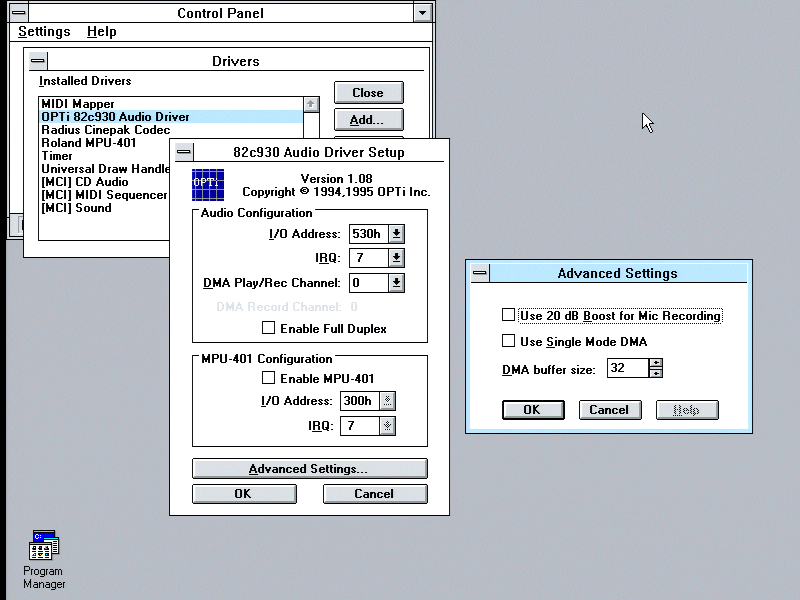

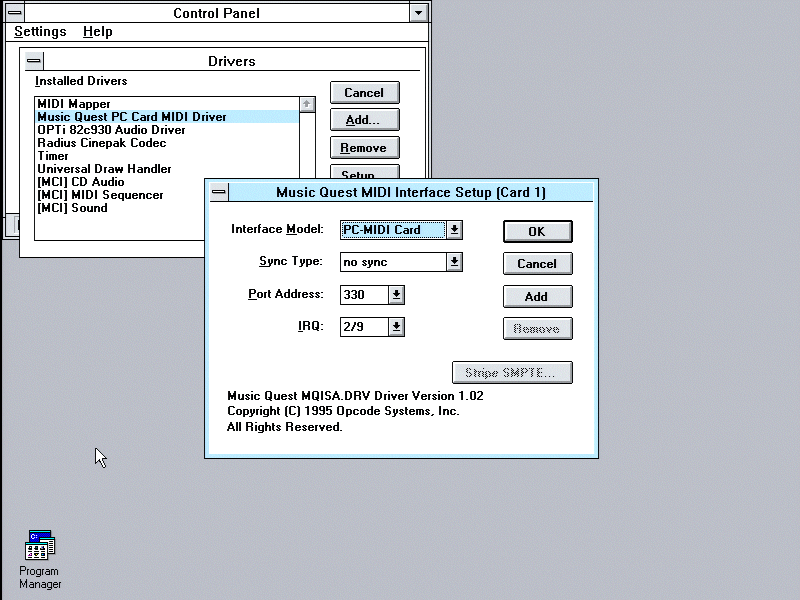

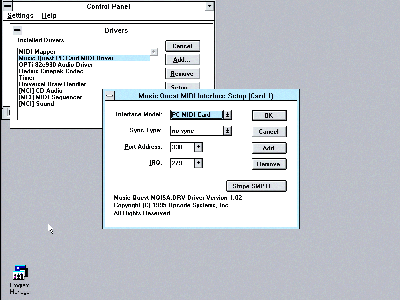

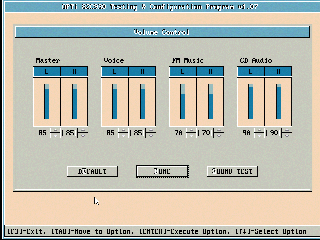

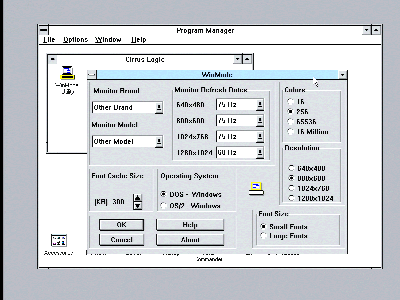

enjoy some shots we got during testing - click to enlarge!
SonicVision
PRO Jumper SettingsSonicVision
PRO Driver Downloads
 |

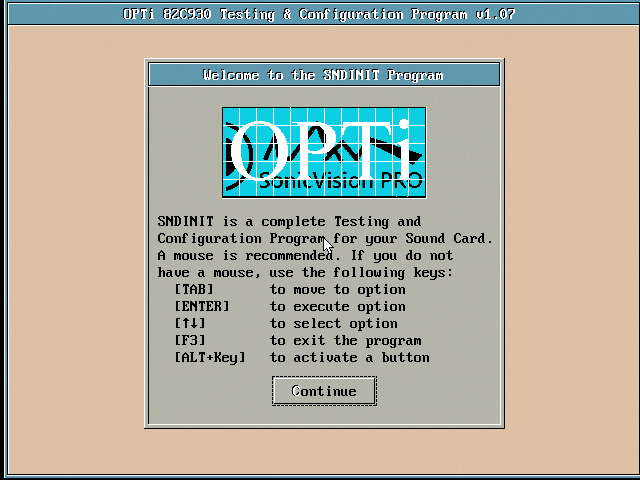

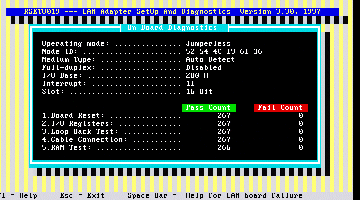

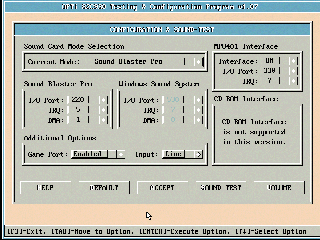

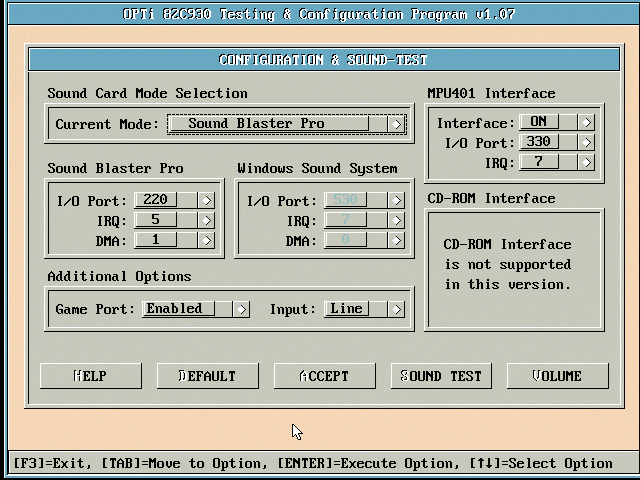

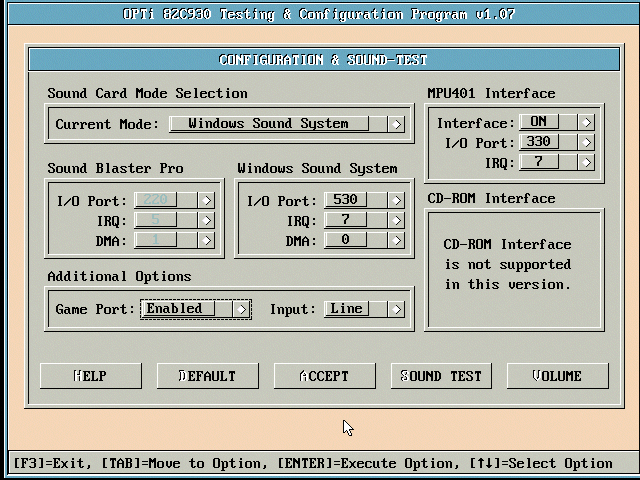

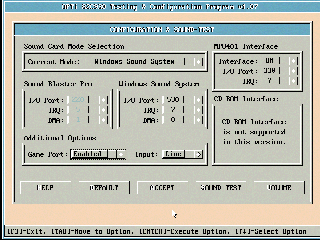

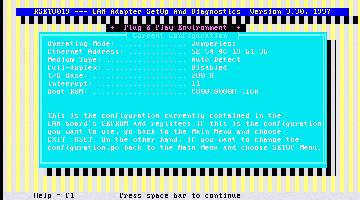

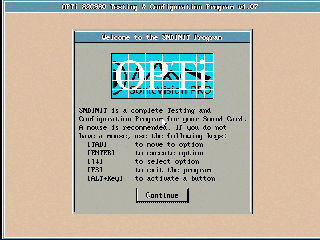

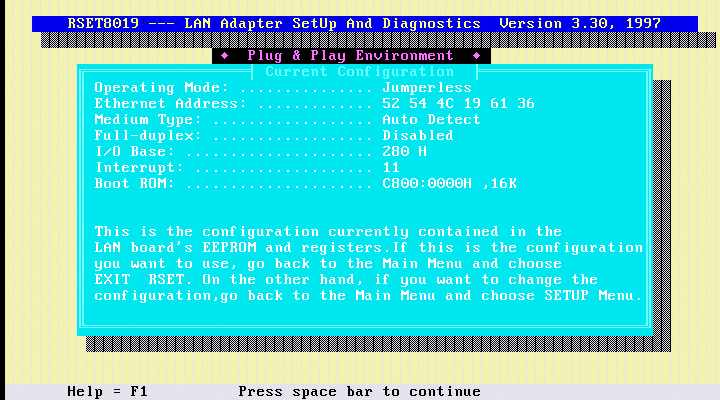

The SonicVision PRO is a 4in1 card design - the only device on it that needs jumper settings for IRQ and Port Adress is the PCMIDI MPU. Sound is configured each boot with OPTI's SNDINIT.EXE , Realtek network chip is configured with RSET8019.EXE and the settings are saved to it's EEPROM. You will find everything you need and more in the driver downloads below. |
| Chip Model | Driver Type | Version | Download | Release Notes |
 CL-GD5434 VGA |
 |
|||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
 |
||||

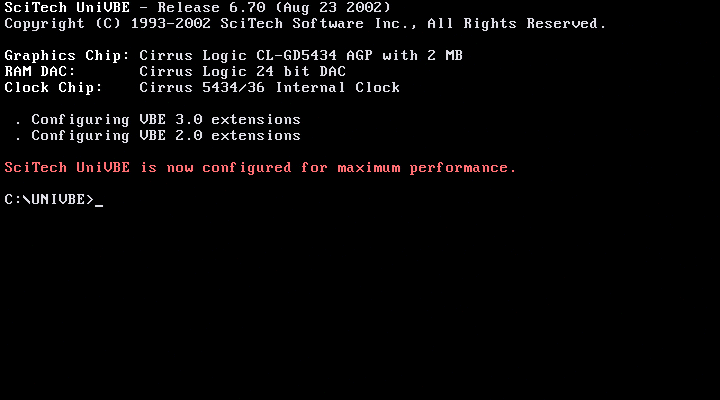

| Scitech Software Display Doctor freeware versions local mirror site |
 |
|||
|
|
|
| Chip Model | Driver Type | Version | Download | Release Notes |
 82C930 Sound |
DOS & Windows 3.1x installation package |
|
|
|
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
|
||||
|
|
|
| Chip Model | Driver Type | Version | Download | Release Notes |
 RTL8019 Network |
DOS driver package |
|
|
|
| Windows for Workgroups 3.11 driver package |
|
|
||
| OEM disk for users and manufacturers , contains all drivers for DOS , Windows 3x 9x NT, Unix etc |
|
|
||
|
||||
|
||||
|
||||
|
||||
|
||||
| Official Realtek RTL8019 downloads page |
|
|||
|
|
|
| Chip Model | Driver Type | Version | Download | Release Notes |
 PCMIDI MPU-401 |
Please visit the PCMIDI downloads page for documentation, drivers and utilities ! |
|
|
- |
How to
order it:
Please fill the pre-order
form|
|
|
 |
Thank you for your intrerest in the SonicVision PRO card pre-order! Final price per card is 370eur each card shipped complete and ready to be used with a stainless steel bracket and a jack->midi adapter cable (as always price includes worldwide tracked airmail shipping *except* for the US where the only possible way to ship atm is to use UPS Express with an additional +48e cost - to be paid as needed when the order finalizes) A deposit of 50% is required for the pre-order to become valid - this will help us to understand the actual demand, arrange production and purchase the needed parts/chips. The preoder amount is: • 185eur if you use PayPal f&f or IBAN payment • 195eur if you use PayPal goods&services Production will begin mid-October and the target shipment date is December and onward (depending on your spot in the preorder queue). First come - first served! Cards will be shipped by order of payment. As always we appreciate your ongoing support ! Edro and Leo. |
Contact information
Contact
Form
Join the Discord Server  |
